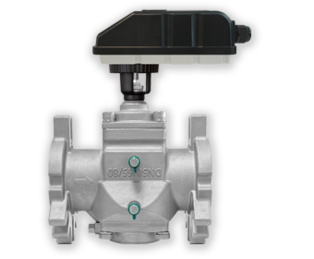

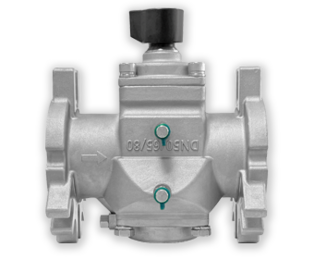

FlowCon Energy FIT System, Stainless Steel
DN15-250 (1/2"-10")
- State-of-the-art pressure independent balancing and temperature control (PITCV)
- Cost savings due to optimized energy consumption, improved efficiency and ΔT control

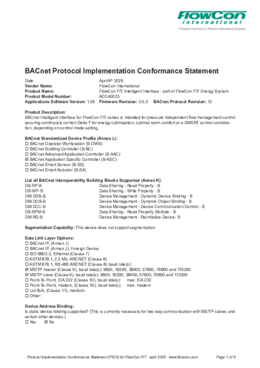

- Simple monitoring via Bluetooth® or analog to BMS via BACnet

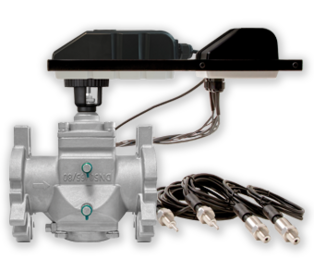

- All in one system including PICV, Intelligent Interface and sensor kit
- State-of-the-art user-friendly programmable display actuator on PICV
- SM actuators: electrical 2-10V modulating, optional failsafe and optional BACnet
- SM.0.0.1.3/4 actuators: Adjustable to minimum 100 different maximum flow rate limits
- SM.0.0.0.6 actuator: Adjustable to minimum 51 different maximum flow rate limits
- Intelligent Interface with integrated BTU meter and flow meter
- Sensor kit including 2 temperature sensors and 2 pressure sensors
- AISI 316L stainless steel PICV housing and stainless steel sensors
- DN15-40: PICV with double union end connection (female or male)
DN50-250: PICV with universal flange connection
Pressure rate:
DN15-40: PN25
DN50-250: PN40
Sizes:
DN15-250 (1/2"-10")
ΔP-range:
30-800 kPaD (4.4-116 psid)
Flow rate:
SM.0.0.1.3/4 actuators: 0.00685-76.8 l/sec (0.109-1220 GPM)
SM.0.0.0.6 actuator: 0.176-76.8 l/sec (2.78-1220 GPM)
