FlowCon Partner Valves
FlowCon QuickDisc®
DN15-20 (1/2"-3/4")
- Partner valve for FlowCon SDP and EDP (DPCV)
- Static balancing valve utilizing a ceramic disc for flow regulation
- Built-in venturi for flow measurement
- Stepless flow setting
- Shut-off leakage: bubble tight
- Brass housing
- Fixed female-by-female threaded
- Max. operation ΔP: 2700 kPaD (400 psid)
Sizes:
DN15-20 (1/2"-3/4")
Flow rate:
66.6-5260 l/hr (0.29-23.2 GPM)
FlowCon Partner Ball
DN15-50 (1/2"-2")
- Partner valve for FlowCon SDP, EDP and ADP (DPCV)
- Ball valve design as a partner valve
- Brass housing
- Fixed female-by-female threaded
Sizes:
DN15-50 (1/2"-2")
FlowCon Partner Globe
DN65-300 (2 1/2"-12")
- Partner valve for FlowCon PIM™-DP (DPCV)
- Variable orifice double regulating valve
- Lockable and tamper proof
- Stepless flow setting
- Shut-off leakage: EN12266-1
- Cast iron housing
- Double flanged connection
Sizes:
DN65-300 (2 1/2"-12")
Flow rate:
4500-1500000 l/hr (19.8-6600 GPM)
FlowCon QuickDisc® Literature
FlowCon Partner Ball Literature
FlowCon Partner Globe Literature

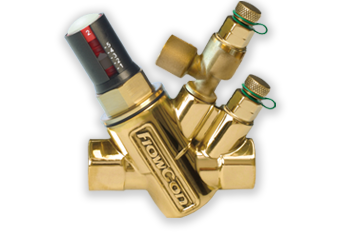

FlowCon S-JUST
DN15-25 (1/2"-1")
- Partner valve for FlowCon SDP and EDP (DPCV)
- Externally adjustable static balancing valve
- Serviceable
- Adjustable to 41 different Kv values, stepless
- Forged DZR brass housing DN15/20/25 (1/2"-1")
- Standard with pressure/temperature plugs
- Fixed female-by-female threaded
Sizes:
S-JUST.0: 20 mm (3/4") insert
Flow rate:
0.0039-1.59 l/sec (0.0616-25.1 GPM)

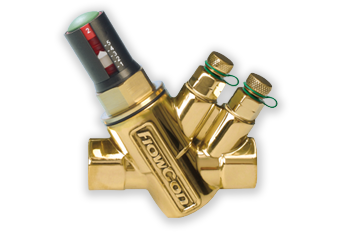

FlowCon E-JUST
DN15-50 (1/2"-2")
- Partner valve for FlowCon SDP and EDP (DPCV)
- Externally adjustable dynamic balancing valve
- Serviceable
- Adjustable to 41 different flow rate limits
- Forged brass or DZR brass housing DN15/20/25 (1/2”-1”), forged brass housing DN25-50 (1”-2”) or ductile iron housing DN40/50 (1 1/2”-2”)
- Optional pressure/temperature plugs
- Fixed female-by-female threaded
Sizes:
E-JUST.1: 20 mm (3/4”) insert
E-JUST.2: 40 mm (1 1/2”) insert
E-JUST.3: 50 mm (2”) insert
ΔP range:
17-400 kPaD (2.47-58.0 psid)
Flow rate:
0.0278-4.48 l/sec (0.44-70.9 GPM)
FlowCon Composite
DN15-32 (1/2"-1 1/4")
- Partner valve for FlowCon SDP and EDP (DPCV)
- Internally adjustable dynamic balancing valve
- Serviceable
- Adjustable to up to 8 different flow rate limits
- Forged brass or DZR brass housing DN15/20/25 (1/2”-1”)
- Optional pressure/temperature plugs
- Fixed female-by-female threaded
Sizes:
ABV1: 20 mm (3/4") insert
ABV2: 40 mm (1 1/2") insert
ΔP range:
15-410 kPaD (2.2-59.5 psid)
Flow rate:
0.0081-1.43 l/sec (0.128-22.7 GPM)
FlowCon S-JUST Literature
FlowCon E-JUST Literature
FlowCon Composite Literature
