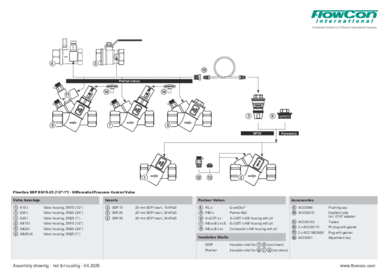

- Pre-set differential pressure controller (DPCV)
- No site adjustment
- Tamper proof
- Available in 3 different pre-set versions
- Forged brass or DZR brass housing DN15/20/25 (1/2”-1”)
- Optional pressure/temperature plugs
- Fixed female-by-female threaded
- Max. operational ΔP: 500 kPaD (72 psid)
SDP.10: 10 kPaD (1.45 psid)
SDP.20: 20 kPaD (2.90 psid)
SDP.30: 30 kPaD (4.35 psid)
35-1420 l/hr (0.154-6.25 GPM)
FlowCon Partner Ball
FlowCon Insert Concept
The modular construction gives you:
Easy selection - Easy setting - Easy maintenance
- Are you looking for full flexibility?
- Do you want a full serviceable solution?
- Will simple flushing be a benefit in your HVAC system?
- Are you interested in reduced commissioning time?
- Do you look at circularity and simple waste handling?
